Adlib delivers integrated lighting, video, and rigging for Doja Cat’s European leg of the ‘Tour Ma Vie’ World Tour

The Video System

The visual package involved the deployment of 233 square metres of ROE Visual LED panels alongside a multi-channel broadcast camera chain.

LED Surfaces & Processing

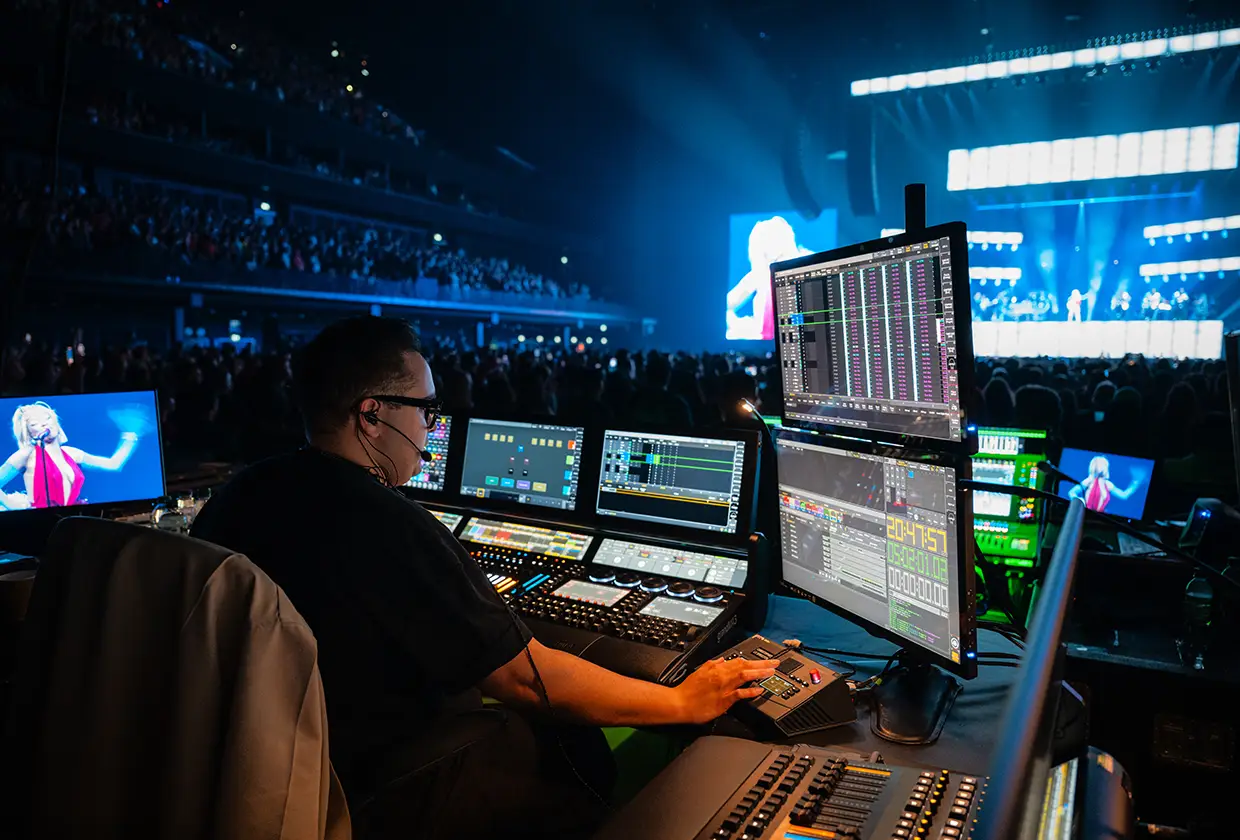

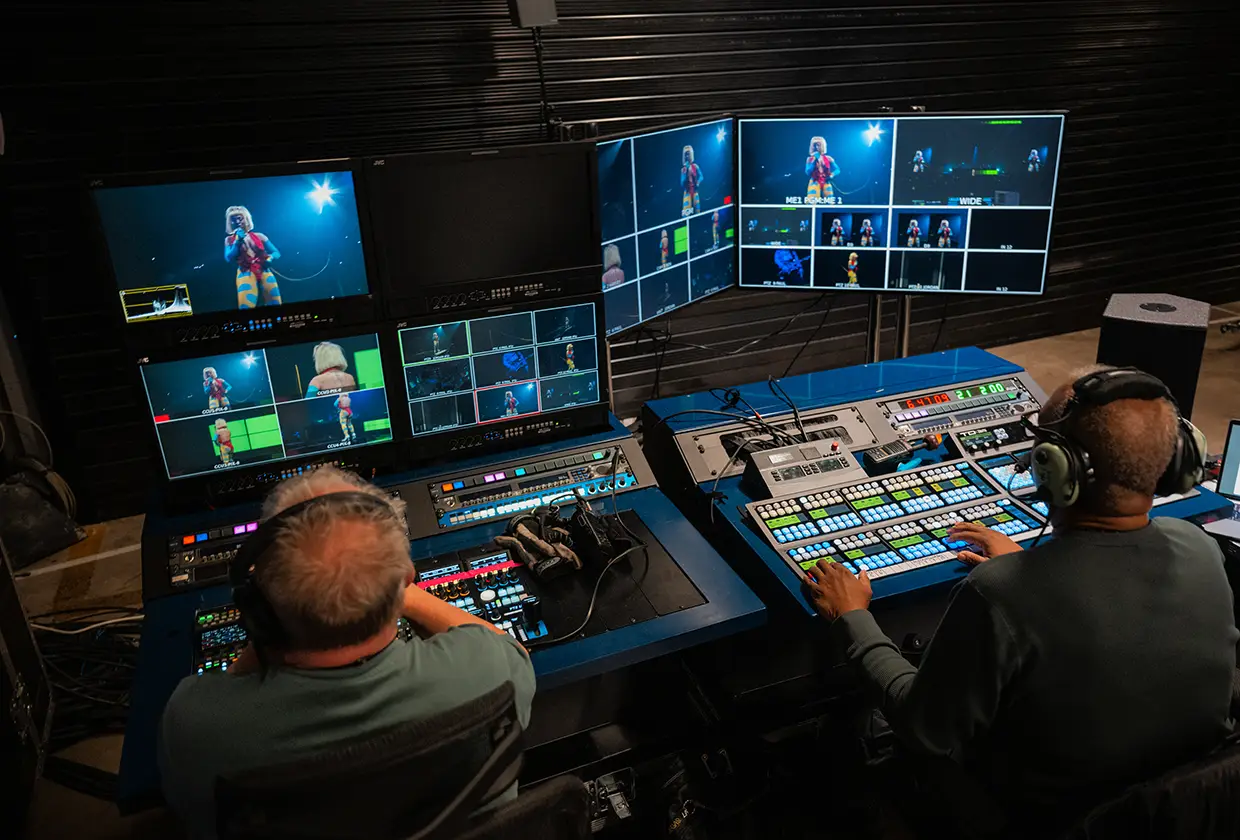

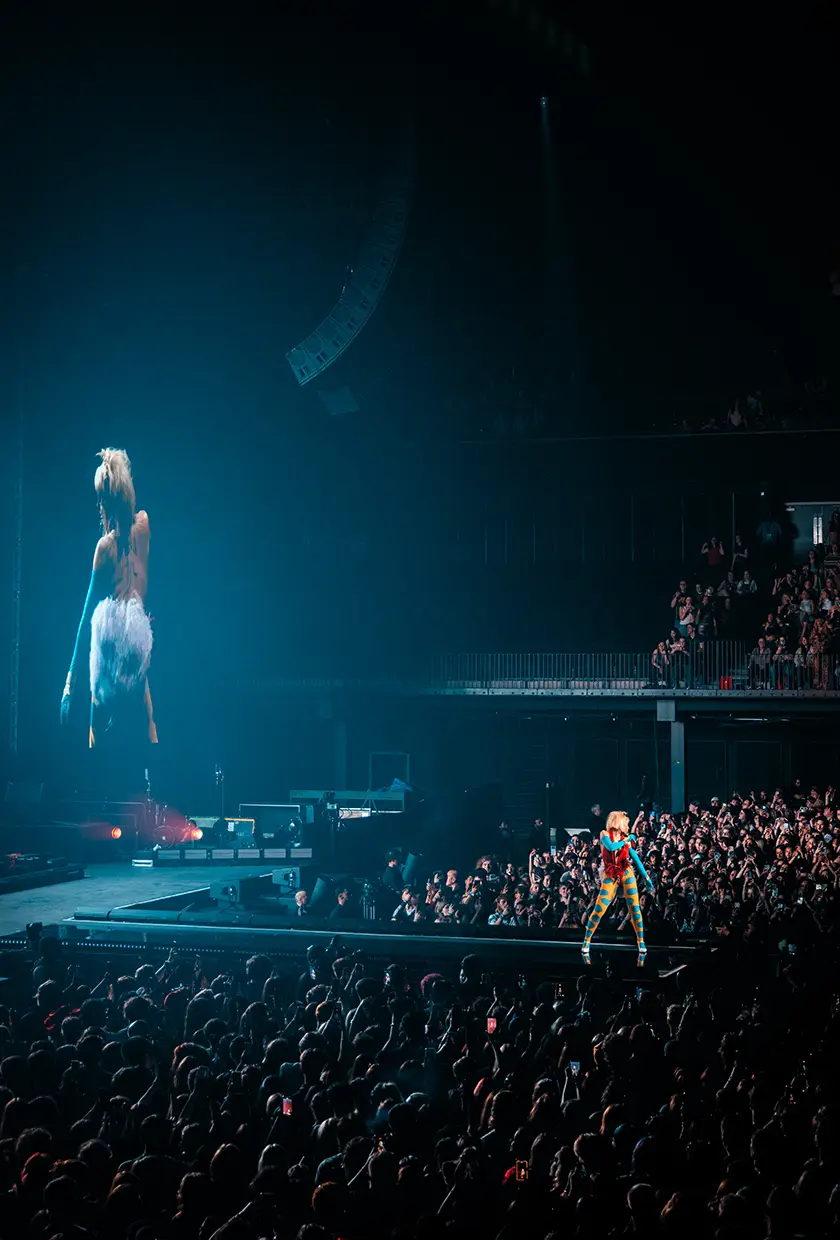

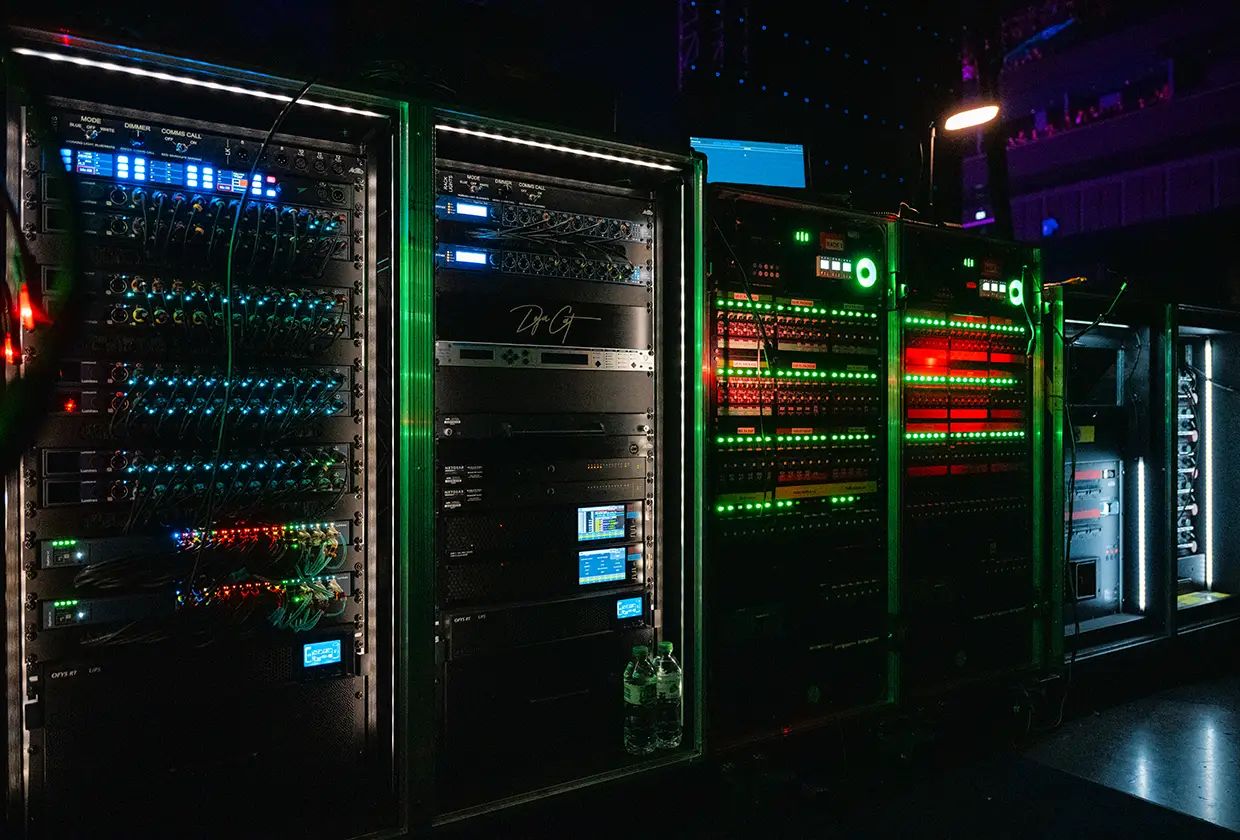

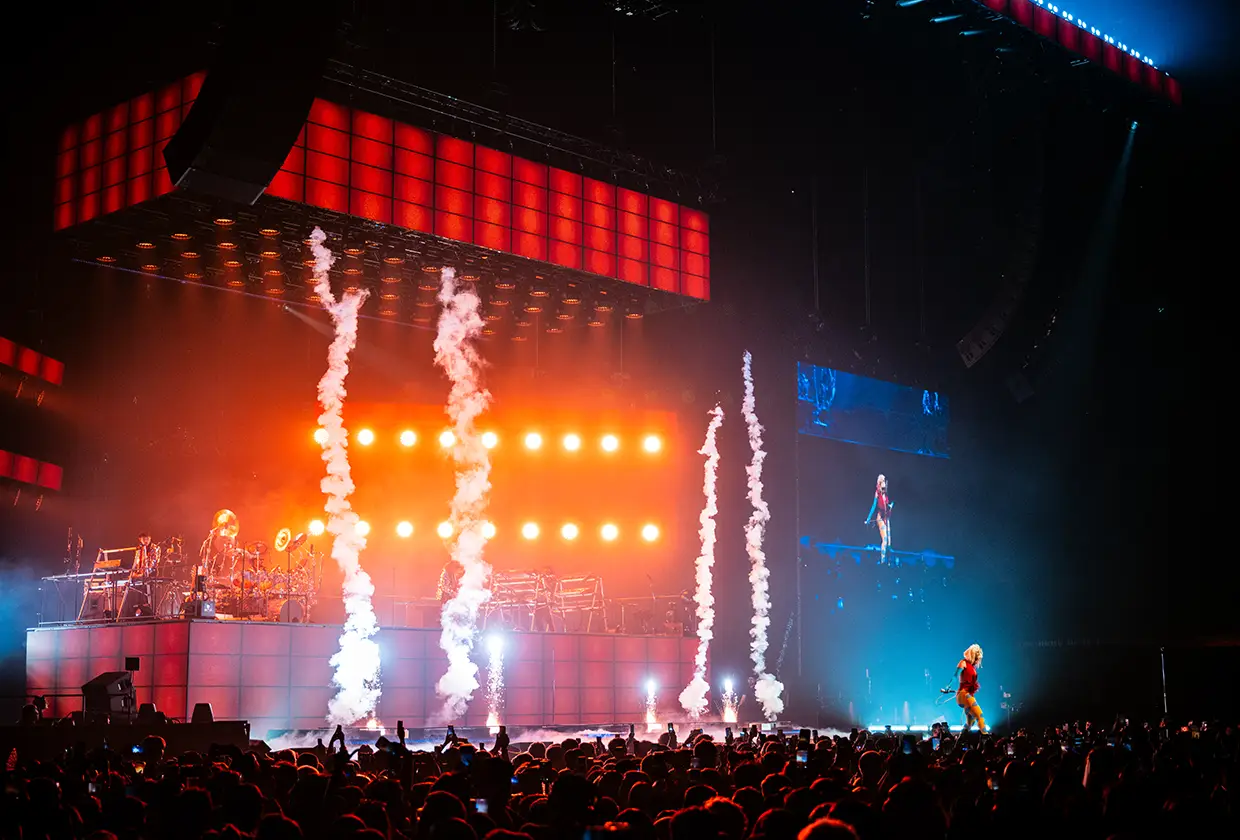

The extensive LED layout was constructed entirely from ROE Visual BQ4 panels. This included traditional 7m x 8m IMAG screens and two 23m x 2m horseshoe structures, one cladding a platform on stage and the other flown, both featured seamless corners. These two large surfaces centering the stage were complemented by four upstage ribbons measuring 9.5m x 0.5m each and a 20m x 0.5m front truss cladding system with seamless corners. The entire LED array was driven by a bespoke Adlib Disguise GX3 media server system controlled by a grandMA3 light, with camera control and signal routing managed via a custom Adlib Iridium PPU system incorporating a Ross Ultrix router and a Ross Carbonite switcher.

Camera Channels

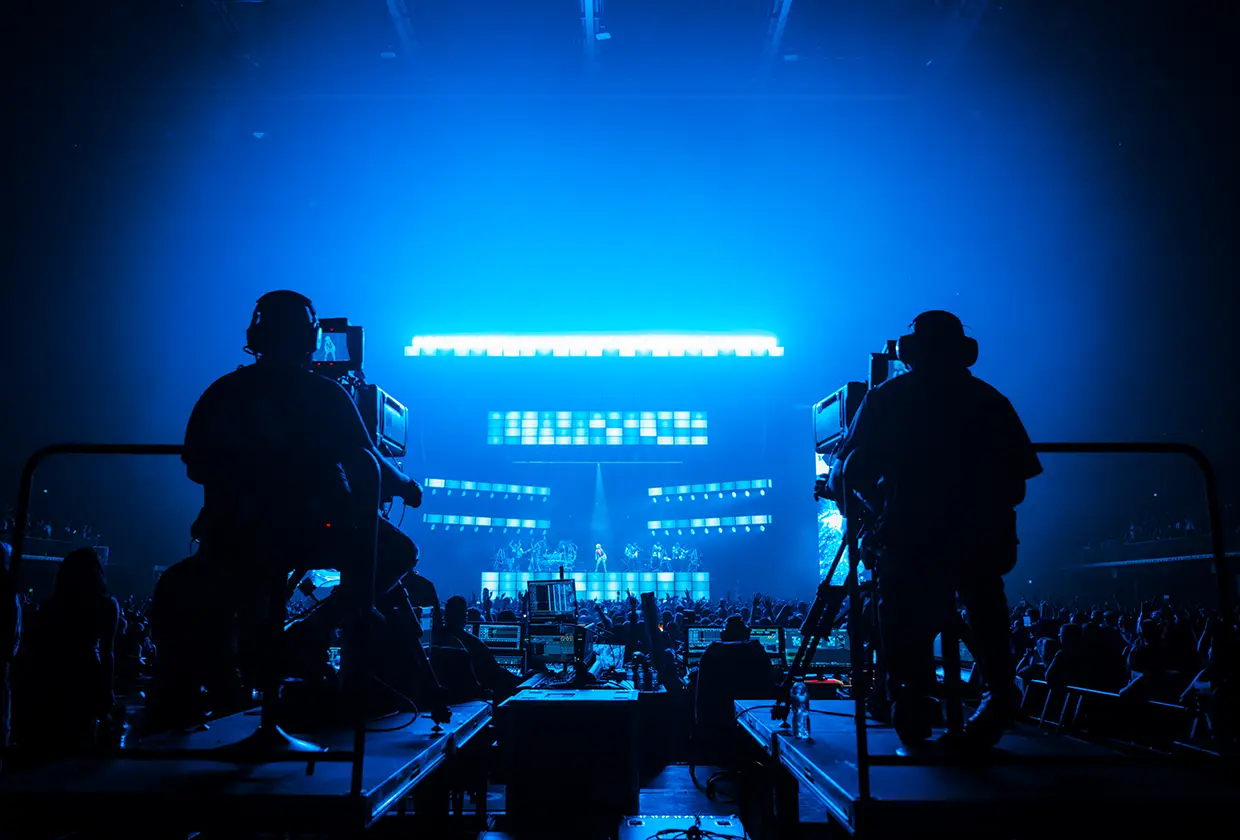

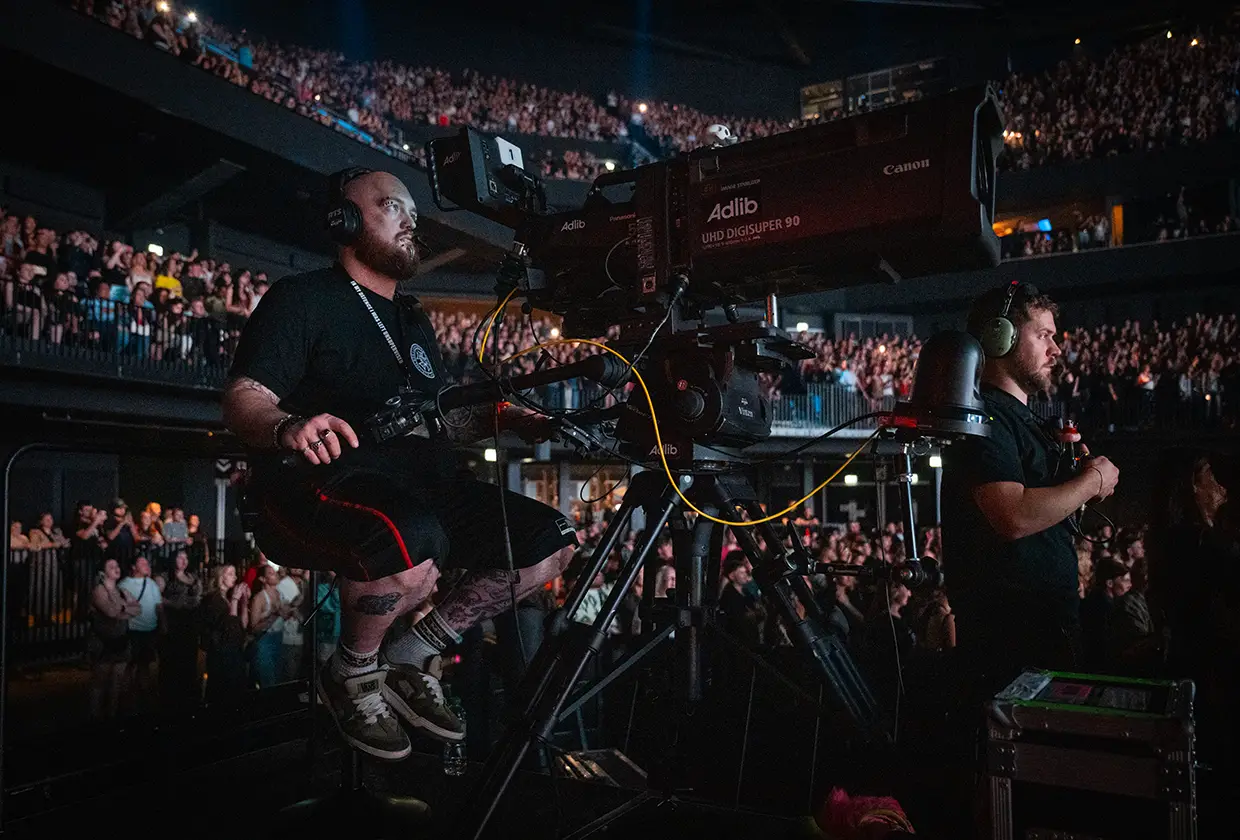

Broadcast camera coverage featured four Panasonic UC4000 channels equipped with a selection of optics, including two Panasonic UJ90x lenses, one Panasonic CJ14 lens, and one Panasonic CJ20 lens. This was reinforced by an extensive remote camera setup consisting of eight Panasonic UE160 PTZ cameras mounted on Proaim Shockmounts and operated via two Panasonic RP-150 PTZ controllers.
